ECT3000B - Circuit Testers
Introduction

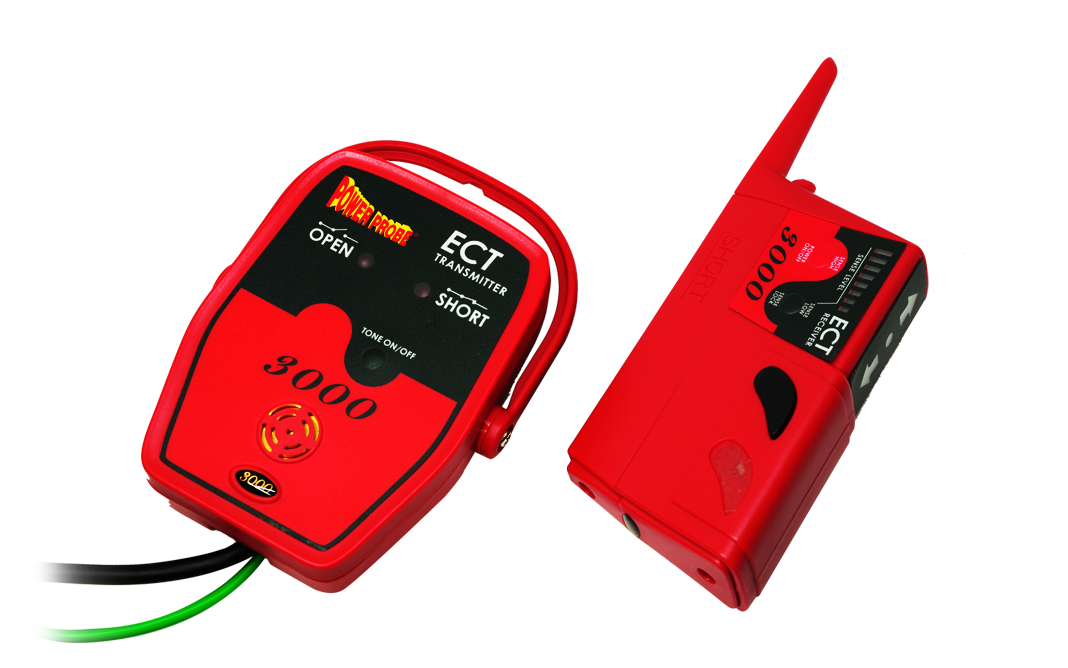

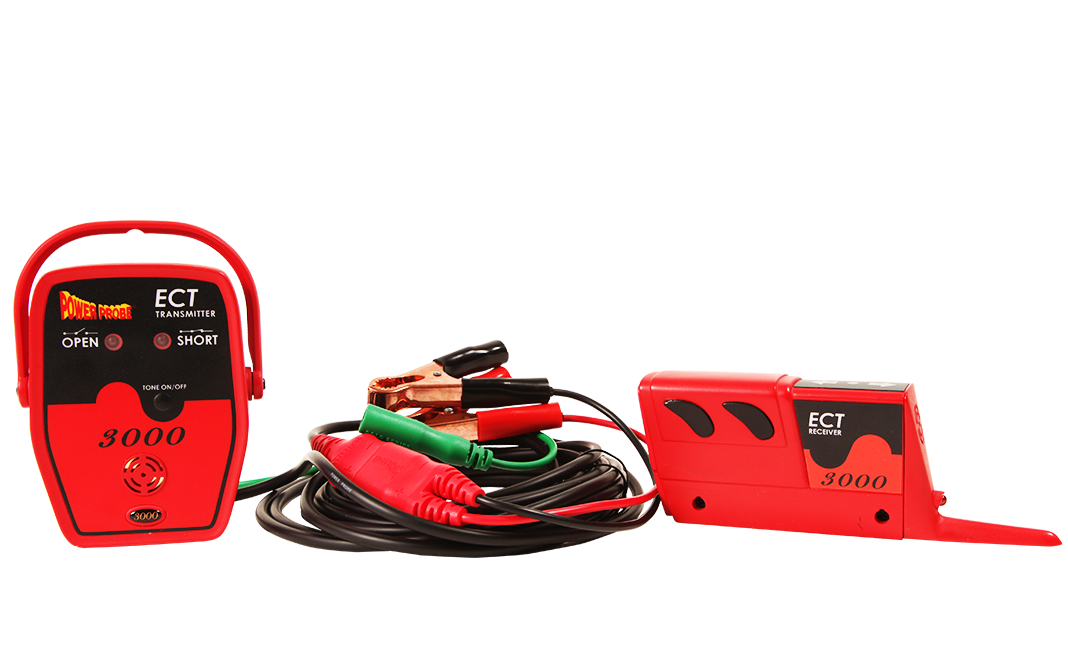

We designed the ECT3000 as a quick solution to your automotive circuit problems. The ECT3000 consists of 2 main components. An Intelligent transmitter and a Intelligent receiver along with a set of connection adapters that will help you :
Features
Locate short circuits without removing plastic panels,molding, and carpet Find short to ground circuits, switches, or breaks in wires Test and find intermittent conditions Sensitivity adjustment from 1-8 in (3-20 cm) Trace short to ground wires with visual navigation & sound indicators Works on Cars, Boats, RV’s, Light Duty, Heavy Duty Trucks, and Trailers
TRANSMITTER |
|
Min Operating Voltage |
6 VDC |
Max Operating Voltage |
48 VDC |
Working Current |
<200mA |
Working Frequency |
4KHz |
Max Operating Temp |
50°C |
Max Storage Temp |
70°C |
Max Operating Relative humidity |
80% (Non-condensation) |
Max Storage Relative humidity |
80% (Non-condensation) |
Altitude |
<2000m |
RECEIVER |
|
Power Supply |
2 X 1.5V AAA |
Working Current |
When not signal be detected <15mA |
Power Consumption When Power Off |
<10uA |
Max Operating Temp |
50°C |
Max Storage Temp |
70°C |
Max Operating Relative humidity |
80% (Non-condensation) |
Max Storage Relative humidity |
80% (Non-condensation) |
Altitude |
<2000m |
