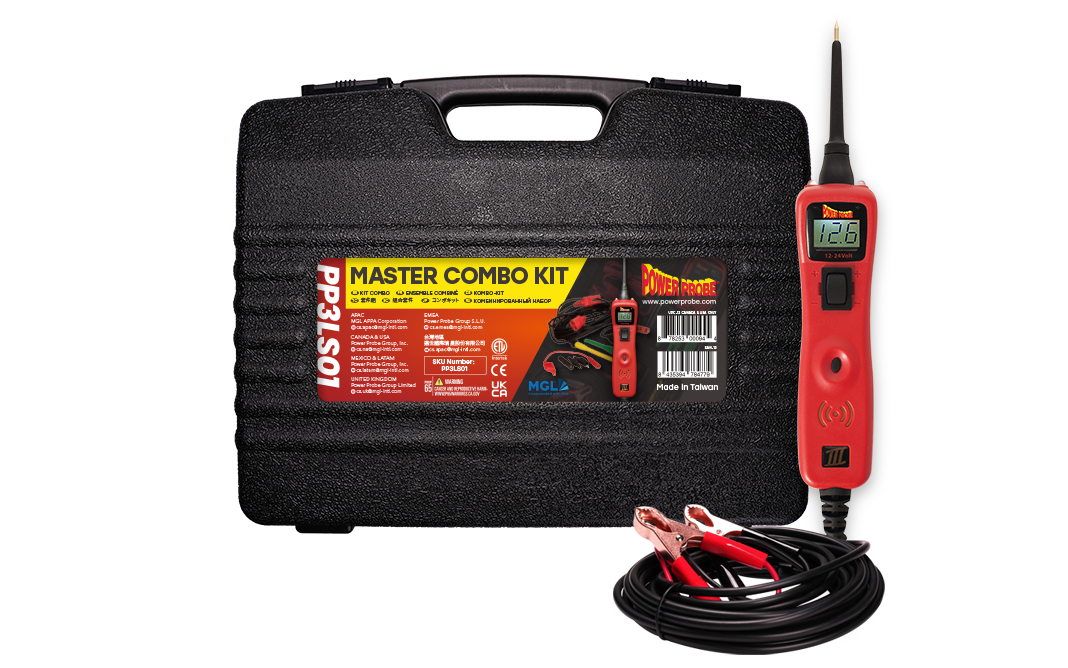

PP3LS01 - Circuit Tester Kits

Introduction

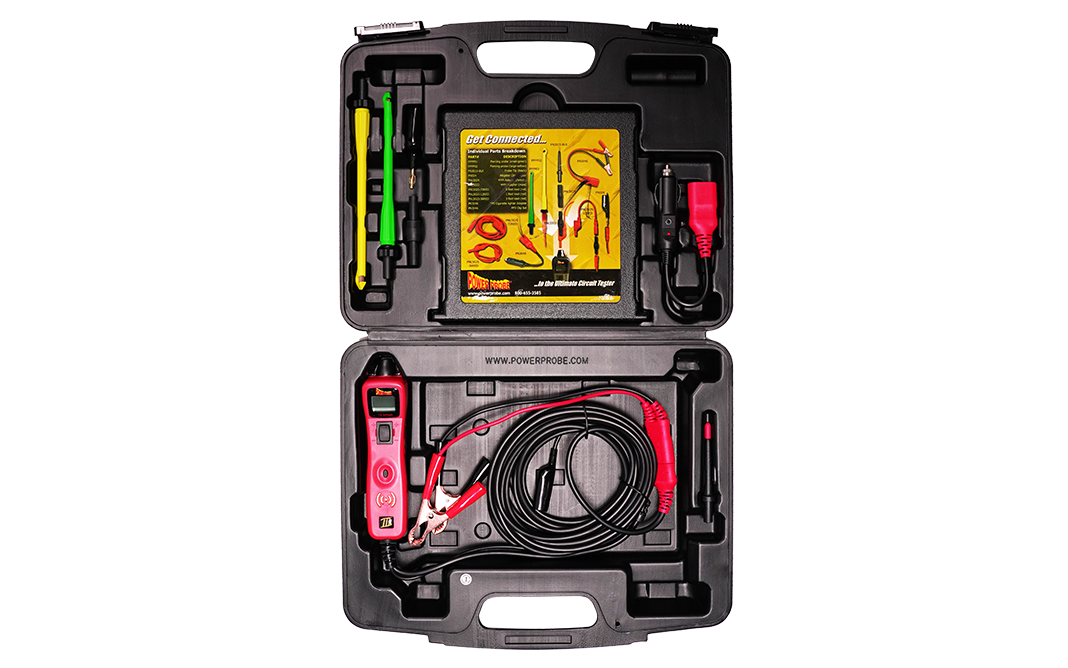

Power Probe 3 combined with the Gold Series Lead Set makes this kit the ultimate in circuit testing diagnosis. The best sidekick to the PP3 is a kit with different connectors, adapters, and extensions. The PP3LS01 was designed to increase the usability for the Power Probe 3 while diagnosing electrical circuits.

Features

- DC Voltmeter Indicators provide active feedback

- LED Lights

- Bad Ground –Indicator

- Short Circuit Indicator

- Relay and Component Tester

- Audible Monitoring of Electrical Signals

PP3

- DC 0 – 70V + 1 digit

- P-P 0 – 70V

Frequency response of tone pass through

- 10Hz to greater than 10 Khz

PP display

- 15Hz Square Wave

- 35Hz Sine Wave

Power Probe Mode – Continuity to ground

- First level – display is enabled less than 20K

- Second level – green LED is enabled less than 2K

– & + Peak Detector Response

- Single event capture less than 200μs pulse width

- Repetitive events less than 1μs pulse width

Peak to Peak Mode

- 0 – 70V + 1 digit

- 4Hz to over 500kHz Square Wave input

- 4Hz to over 250kHz Sine Wave input

Threshold for PPAC/Audible passthrough

Circuit Breaker

8 amp thermal response – Manual reset

Typical Response
