PPDMM - Digital Multimeter
Introduction

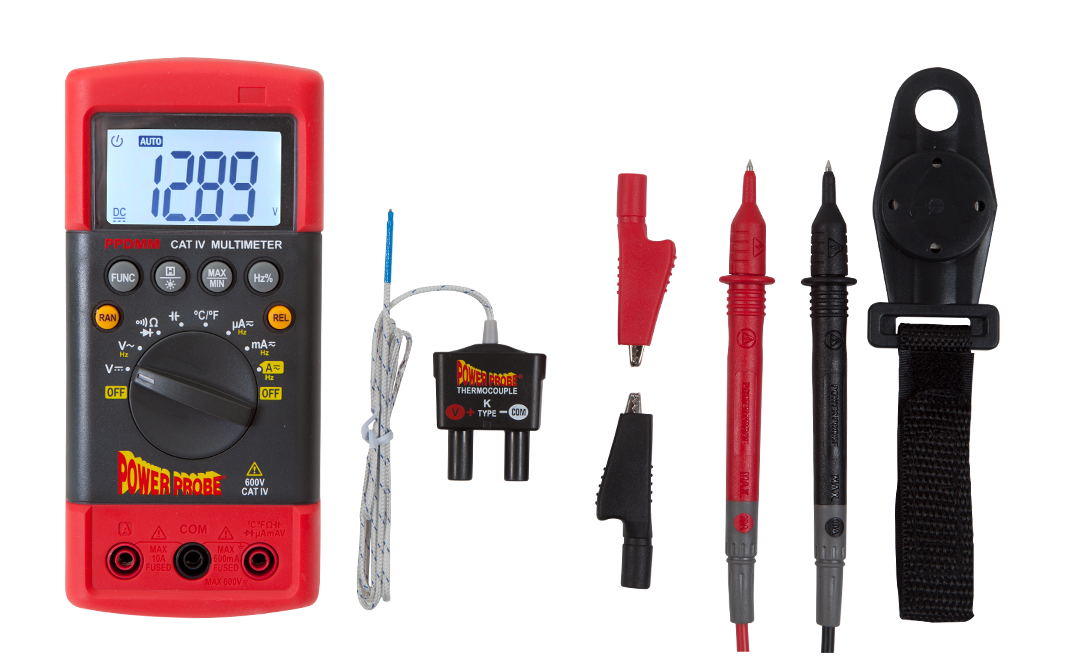

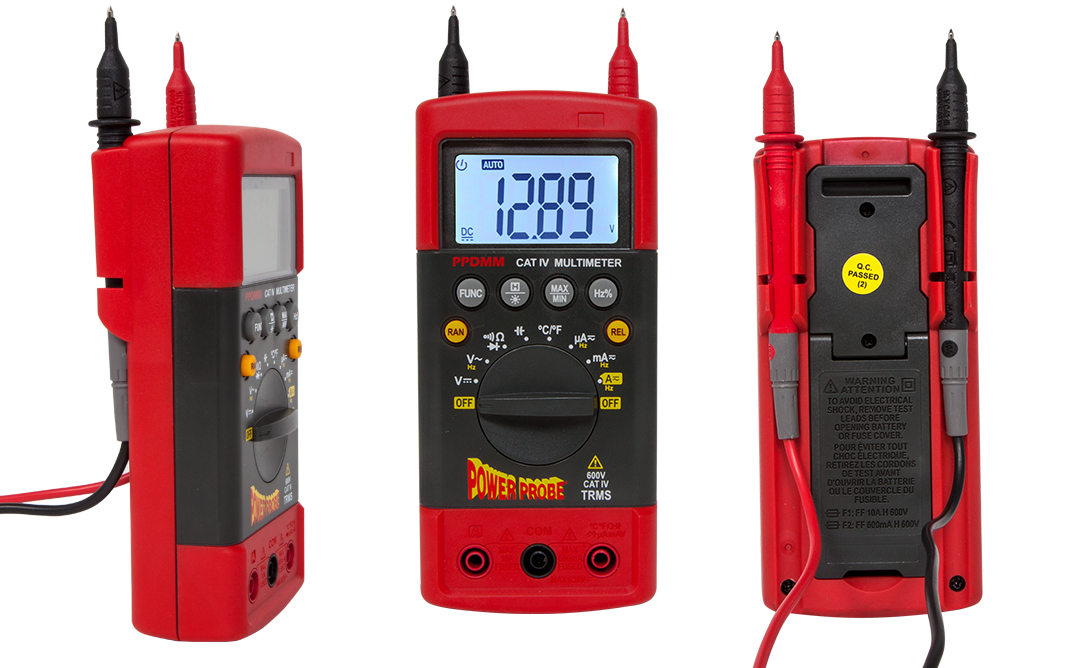

This CAT-IV 600V Automotive Digital Multimeter by Power Probe is versatile, accurate and rugged with Large LCD Screen with Bright Backlight. Measures AC/DC Voltage and Current, Resistance, Frequency, Temperature, and Capacitance.
Features
CAT-IV 600V hybrid safe rating
Digital Volt and Ohmmeter for circuit testing
Measures Frequency for Sensor Testing
Included K-Type Temp Probe allows for
temperature readings
|
Operating Altitude |
2000m |
|
Relative Humidity |
75% max operating |
|
Operating Temperature |
0°C~40°C/32°F~104°F (<80% RH) |
|
Storage Temperature |
-10°C~60°C/14°F~140°F (<70% RH) |
|
Accuracy Temperature |
-18°C~28°C/64°F~82°F (<80% RH) |
|
Temperature Coefficient |
0.1x(specified accuracy)/°C (<18°C or >28°C) |
|
Sampling Frequency |
approx. 3 times/sec. |
|
Fuse Protection |
μA/mA input: F600mA/600V 10A input: F10A/600V |
|
DC/AC Voltage |
600V |
|
DC/AC Current |
10A |
|
Resistance |
60MΩ |
|
Capacitance |
60mF |
|
Frequency |
10kHz |
|
Diodes |
2.7V |
|
Continuity |
<50Ω |
|
Temperature |
-20°C~1000°C/-4°F~1832°F |
|
LCD Display |
3 ¾ digit display (6000 counts) |
|
Product Supply |
3x1.5V AAA batteries |
|
Product Size |
160mmx74mmx49mm / 6.3"x2.9"x1.9" |
|
Product Weight |
482g / 1.06lb |
|
Safety Rating |
CAT IV 600V |
|
pollution degree |
II |
|
Safety Standards |
IEC61010-1 |
|
Pollution Degree |
2 |
|
Accuracy |
±(of reading + # of least significant digits) |
