PPECB - OBD-II Breakout Box
Introduction

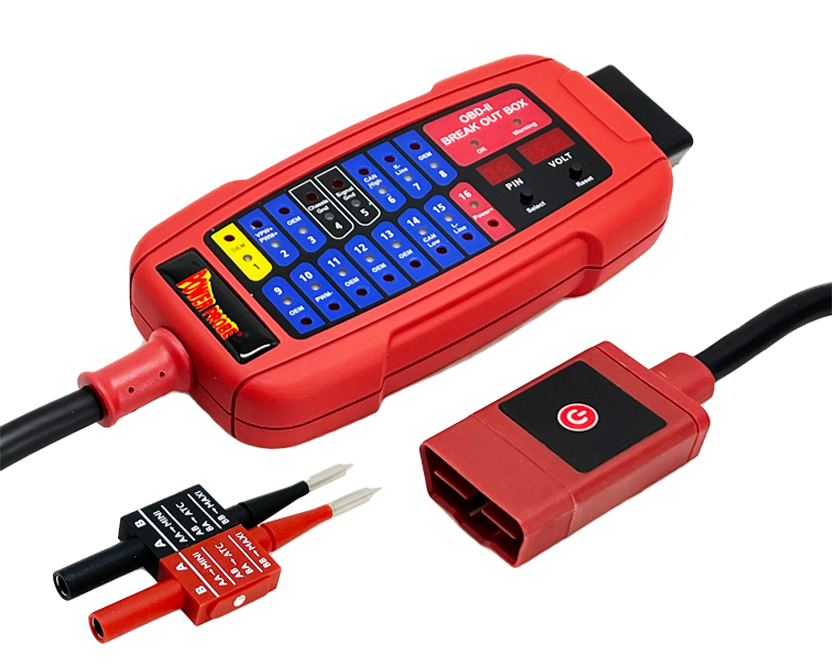

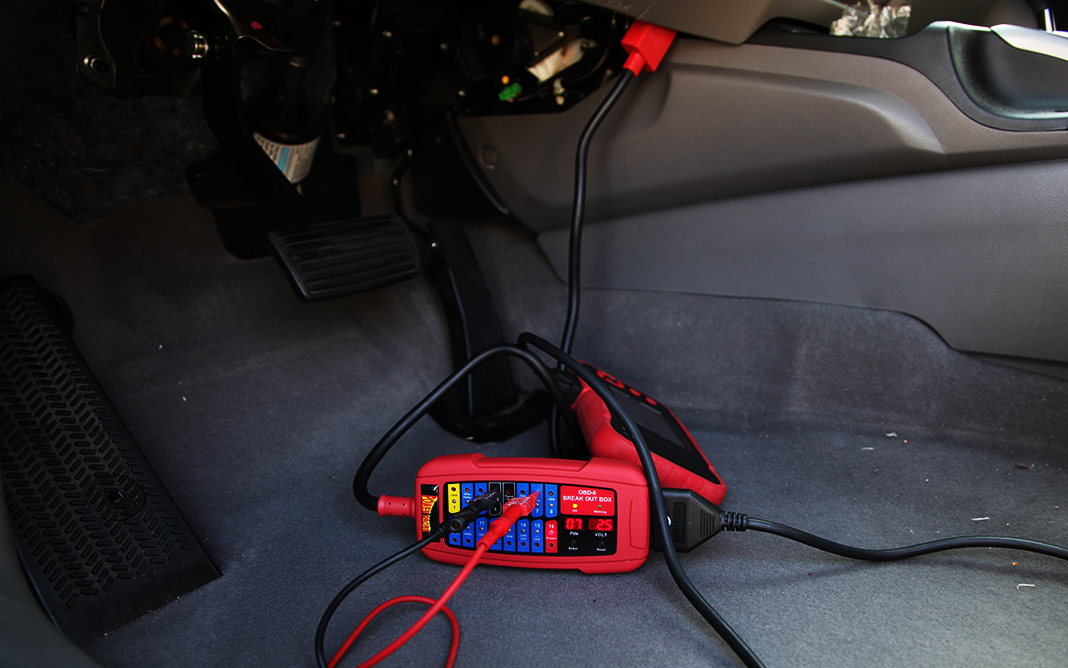

The Power Probe OBD-II Breakout Box is a CAN Bus circuit tester compatible with 12 and 24 Volt systems. The tool connects directly into the Vehicle’s Data Link Connector (DLC) testing for any abnormalities such as shorting and reverse polarity at the pins. If shorting or reverse polarity is present, connecting the PPECB first will prevent harm before connecting a Diagnostic Scan Tool. The Breakout Box provides a live display of present communicating signals without having to use a Digital Multimeter. Additionally, you can quickly test the voltages at all 16 pins.
Features
Operating range |
7.0 - 30.0VDC Input. |
Maximum load |
Up to 3.0 Amps Output. |
Overload protection |
Yes, PTC Fuse (Self-healing) |
Volt displays |
3 Digits LEDs (Resolution: 0.1V) |
Banana sockets |
16 outputs x 1.0mm diameter with LED lamp indications |
Protocols detected |
PWM (J1850), VPW (J1850), ISO 9141-2, DIS/ISO 14230-4, CAN bus (J-2284) |
Operating temperature |
32°F - 122°F(0°C - 50°C) |
Permitted humidity |
Less than 70% |
OBD cable length |
30 inches (0.8 meter) |
Reverse polarity protection |
Yes, LED on pin 4 & 5 turns red. |
