PPKIT03S - Circuit Tester Kits

Introduction

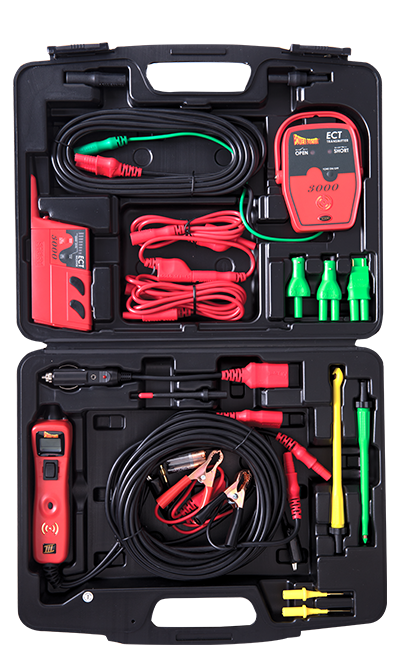

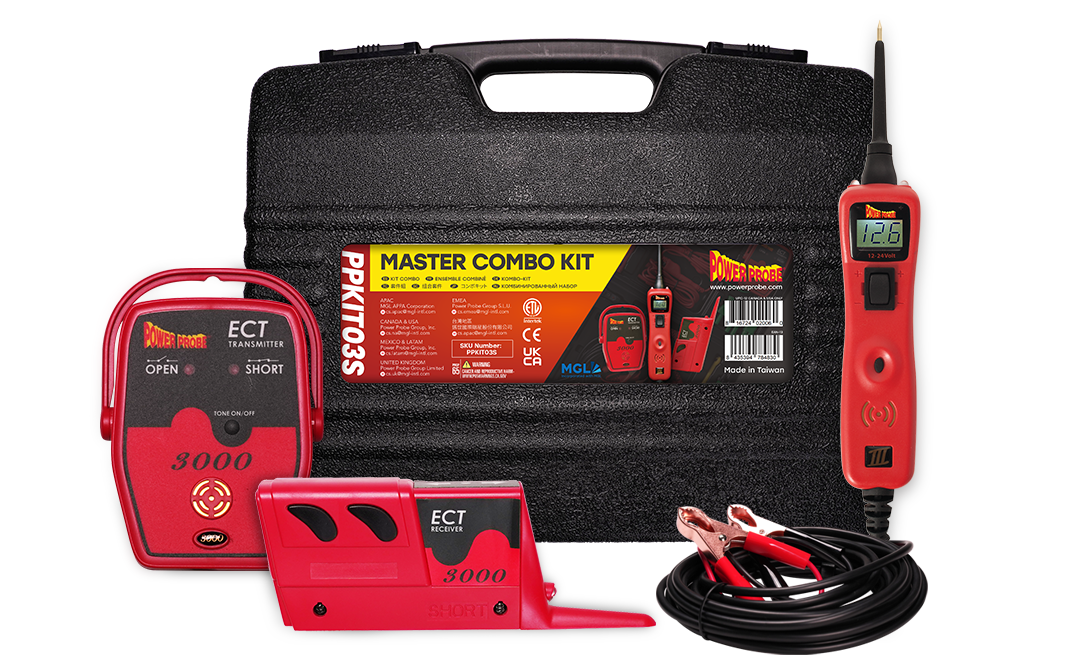

The Power Probe 3 Master Combo Kit combines the Power Probe 3, PPECT3000 and various accessories to provide the ultimate combination of diagnostic and circuit testing capabilities. The Power Probe 3 provides simplified testing of Motors, Lights, Relays, Sensors, as well as supplying Power and Ground for functional component testing on or off the vehicle. The PPECT3000 will help you trace short and open circuits quickly and accurately.

Features

PP3

- DC Voltmeter Indicators provide active feedback

- LED Lights

- Bad Ground –Indicator

- Short Circuit Indicator

- Relay and Component Tester

- Testing trailer lights and connections

- Checking for bad ground contacts

- Audible Monitoring of Electrical Signals

ECT3000

- Locate short circuits without removing plastic panels, molding, and carpet. Find short to ground circuits, switches, or breaks in wires. Test and find intermittent conditions. Sensitivity adjustment from 1-8 in (3-20 cm). Trace short to ground wires with visual navigation & sound indicators. Works on Cars, Boats, RV’s, Light Duty, Heavy Duty Trucks, and Trailers.

PP3

- DC 0 – 70V + 1 digit

- P-P 0 – 70V

Frequency response of tone pass through

- 10Hz to greater than 10 Khz

PP display

- 15Hz Square Wave

- 35Hz Sine Wave

Power Probe Mode – Continuity to ground

- First level – display is enabled less than 20K

- Second level – green LED is enabled less than 2K

– & + Peak Detector Response

- Single event capture less than 200μs pulse width

- Repetitive events less than 1μs pulse width

Peak to Peak Mode

- 0 – 70V + 1 digit

- 4Hz to over 500kHz Square Wave input

- 4Hz to over 250kHz Sine Wave input

Threshold for PPAC/Audible passthrough

Circuit Breaker

8 amp thermal response – Manual reset

Typical Response
