Introduction

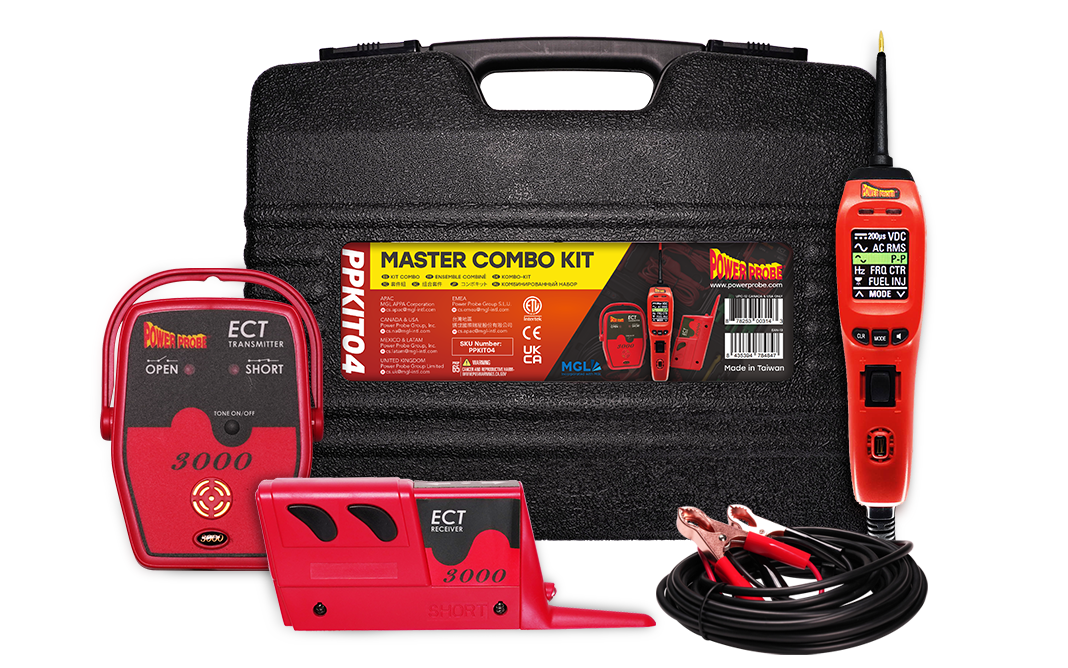

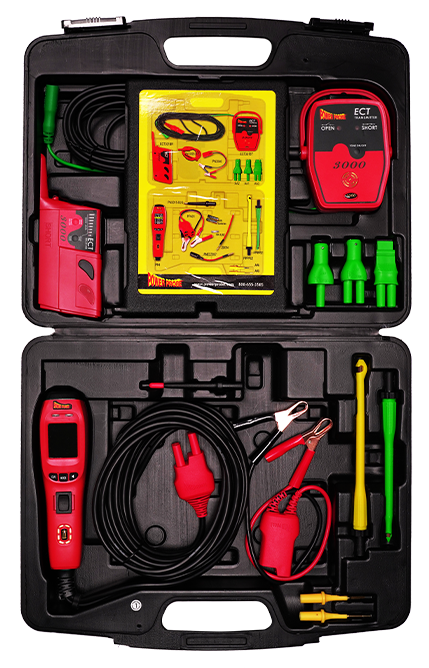

The Power Probe 4 Master Combo Kit combines the Power Probe 4, PPECT3000 and various accessories to provide the ultimate combination of diagnostic and circuit-testing capabilities. The Power Probe 4 provides simplified testing of Motors, Lights, Relays, and Sensors, and even Fuel Injectors. Also, like all Power Probe circuit-testers, it supplies Power and Ground for functional component testing on or off the vehicle. The PPECT3000 will help you trace short and open circuits quickly and accurately.
Features
PP4
- Supply Power or Ground for Functional Component Testing
- Self-Resetting Thermal 8 Amp Circuit Breaker
- Multiple DC Volt readings on the same display
- Ohmmeter provide active feedback
- 12 – 24 Volt Range
- Bad Ground Indicator
- Continuity Tester
ECT3000
- Locate short circuits without removing plastic panels,molding, and carpet Find short to ground circuits, switches, or breaks in wires Test and find intermittent conditions Sensitivity adjustment from 1-8 in (3-20 cm) Trace short to ground wires with visual navigation & sound indicators Works on Cars, Boats, RV’s, Light Duty, Heavy Duty Trucks, and Trailers
|
PP4 |
|
|
Min Operating Voltage |
8 VDC |
|
Max Operating Voltage |
30 VDC |
|
Max Tip Voltage |
450 Volts |
|
Probe Tip Resistance to Ground |
130K Ohms |
|
Computer Safe |
0.1mA floating tip |
|
Voltage Measurement |
-100 to 200 VDC / VAC |
|
Voltage Resolution |
-99.99 to 99.9 V – 0.01V(10mV) 100.0 to 199.9 V – 0.1V (100mV) |
|
Glitch Capture |
>380µS Min Pulse Width |
|
Power Feed Test |
< 30 mA |
|
Resistance Measurement |
Ohms to 10K Ohms |
|
Frequency Measurement |
1Hz to 9999Hz |
|
Driver Test |
50 Ohm Pull Up on Tip Driver On Range: 50mV to 1V |
|
ECT Signal Detection |
2 sec. |
|
Fuel Injector Mode |
LED Flash @ Min 35V @ 100µS Pulse |
|
Red LED Response |
Within 0.5V BATT V and < 10 Ohms |
|
Green LED Response |
< 10. Ohms |
|
Circuit Breaker |
8 Amp Thermal – Auto Reset |
|
Breaker Trip Response |
8 Amps = No Trip 10 Amps = 20 min. 15 Amps = 6 sec. 25 Amps = 2 sec. Short Circuit = 0.3 sec. |
|
Operating Temperature |
-20°C (-4°F) to 50°C (122°F) |
|
Storage Temperature |
-40°C (-40°F) to 65°C (149°F) |
|
ECT3000 |
|
|
TRANSMITTER |
|
|
Min Operating Voltage |
6 VDC |
|
Max Operating Voltage |
48 VDC |
|
Working Current |
<200mA |
|
Working Frequency |
4KHz |
|
Max Operating Temp |
50°C |
|
Max Storage Temp |
70°C |
|
Max Operating Relative humidity |
80% (Non-condensation) |
|
Max Storage Relative humidity |
80% (Non-condensation) |
|
Altitude |
<2000m |
|
RECEIVER |
|
|
Power Supply |
2 X 1.5V AAA |
|
Working Current |
When not signal be detected <15mA |
|
Power Consumption When Power Off |
<10uA |
|
Max Operating Temp |
50°C |
|
Max Storage Temp |
70°C |
|
Max Operating Relative humidity |
80% (Non-condensation) |
|
Max Storage Relative humidity |
80% (Non-condensation) |
|
Altitude |
<2000m |
